Description
PRODUCT INFO

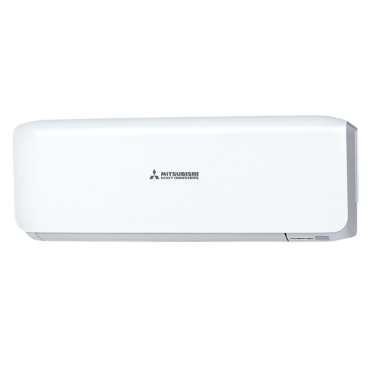

With a stylish and modern design as well as all the advanced features and functions that the Avanti series is known for, the 5.0kW Avanti split system is ideal for heating and cooling medium sized rooms such as a main bedroom, medium sized living room or dining room.
Features:
Modern and stylish design
3D Auto airflow for effective and even air distribution
Allergen clear system to capture and eliminate allergens
Energy efficient R32 refrigerant
Optional Wi-Fi control
SPECIFICATIONS
Capacity Cooling (kw): 5.0
Capacity Heating (kw): 5.8
Star Rating Cooling: 2.5
Star Rating Heating: 3
Refrigerant: R32
Inverter: YES
Dimensions Indoor (WxHxD mm): 870x290x230
Dimensions Outdoor (WxHxD mm): 800x640x290
Specifics: Perfect for small to medium size rooms under 40m2. i.e large bedrooms, theatre room & small living spaces.
INSTALLATION INCLUSIONS
Standard installation package includes:
Back-to-back installation at ground level of a single storey property
Up to 3m of insulated copper pipework
Up to 2m of UV resistant duct pipe cover and condensate drainpipe
Electrical connection from an existing power circuit
Weatherproof electrical isolator
2-year installation warranty
Delivery of AC units and components
Removal & recycling of all boxes & rubbish
Additional Installation Items:
(Some of our most common installation extras – approx. prices only)
Wall Brackets – from $110
AC Lifter – from $110.00 – (req. for units installed on brackets above 1.8m or roof mounted option)
Roof Brackets – from $250.00
Additional Copper Pipe – from $55.00 p/m
Additional Duct Pipe cover – from $30.00 p/m
Additional Duct Bends/Corners – from $20.00 ea
Condenser plastic mounting blocks (par blocks) – from $33 a set of 2
Additional Electrical Cable – from $15.00 p/m
Designated Power upgrade – from $100.00 (If required)
Circuit Enclosure (Single) – from $30.00 (If required)
Side Exit Installation – from $55.00
Condensate Pumps (Internal Wall) – from $350.00
This is to be used as a guide only, our approved installers will quote any additional extras (If required) prior to commencing any work.
